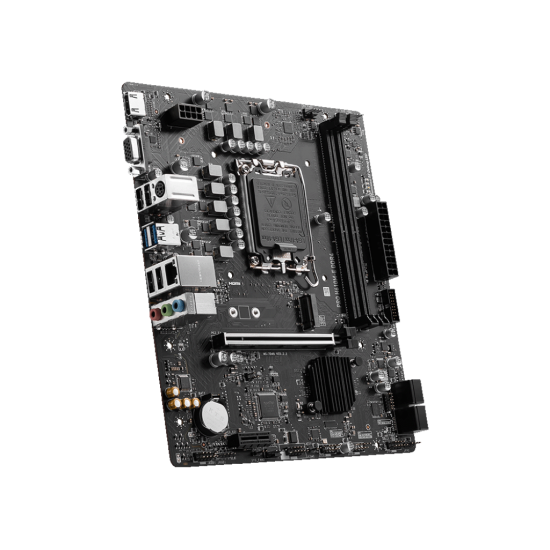

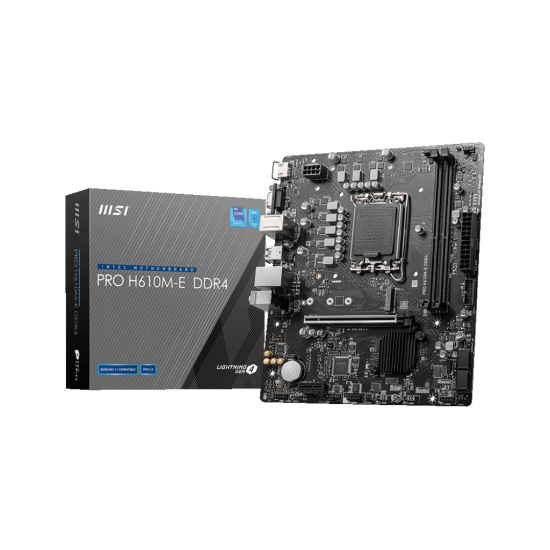

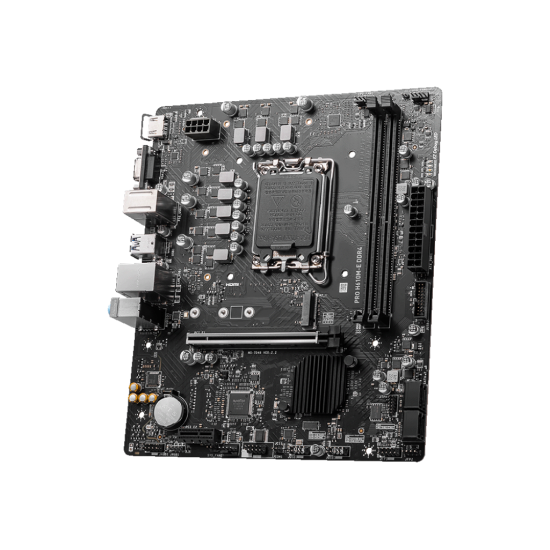

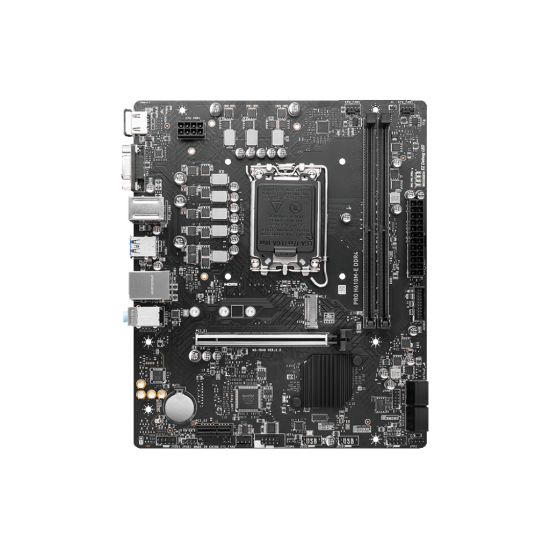

Mainboard MSI PRO H610M-E DDR4

Processor

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
• Processor socket LGA1700

1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel® H610 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB 1
• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot (From H610 chipset)
  • Supports PCIe 3.0 x1

Onboard Graphics

• 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

SATA Ports

• 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD Slot

• 1x M.2 slot (Key M) (from CPU)
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

Audio

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek® RTL8111H 1Gbps LAN controller

Power Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin +12V power connector

Internal USB Connectors

• 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 Type-A connectors (From Hub-GL850G)
  • Supports additional 4 USB 2.0 ports

Fan Connectors

• 1x 4-pin CPU fan connector
• 2x 4-pin system fan connectors

System Connectors

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector

Jumpers

• 1x Clear CMOS jumper

LED Features

• 1x 4-pin RGB LED connector
• 4x EZ Debug LED

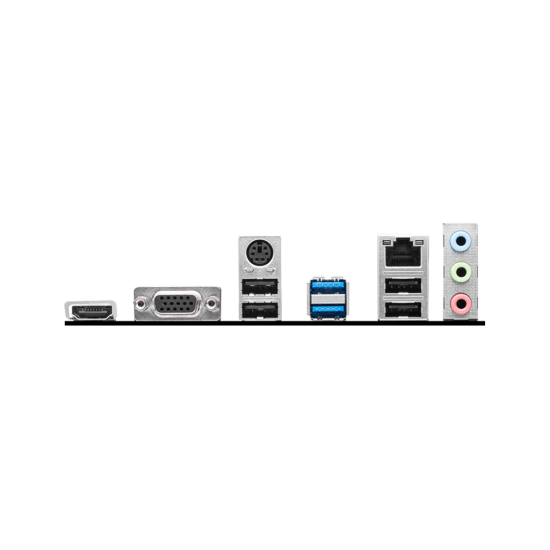

Back panel ports

1. HDMI™
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps Type-A
5. LAN port
6. Audio connector
7. USB 2.0
