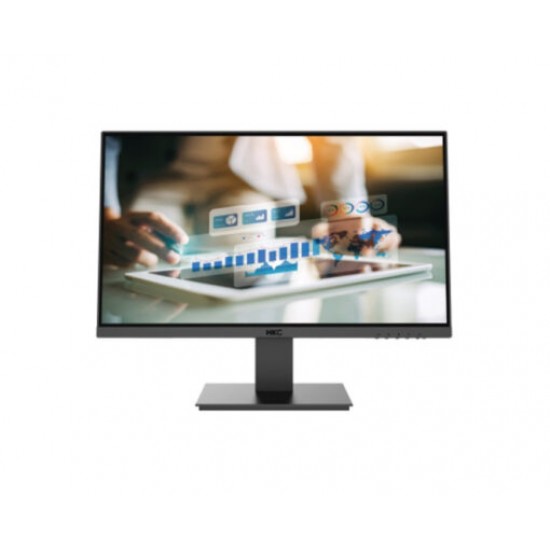

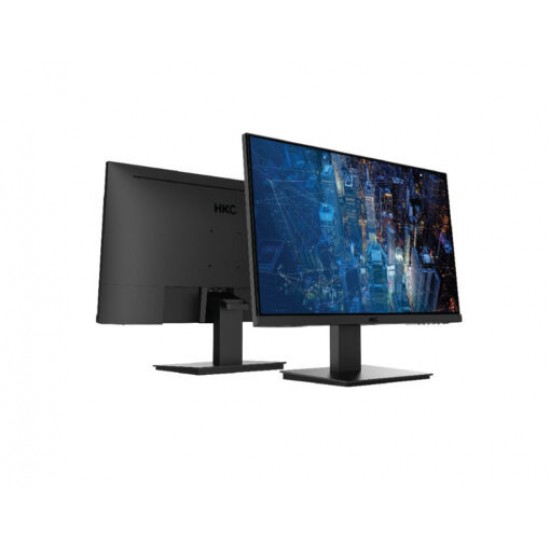

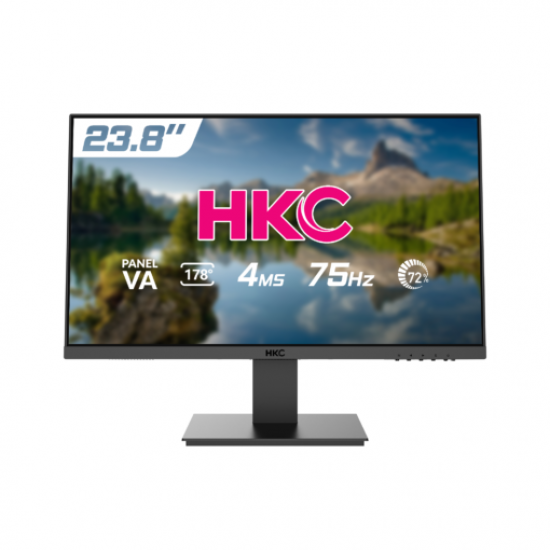

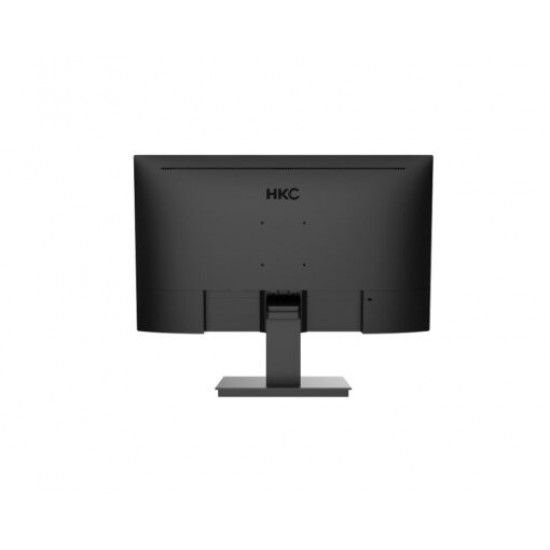

MÀN HÌNH HKC MB24V13/75Hz

MODEL NAME

MB24V13

SIZE

23.8 inch

            LCD PANEL

Display Size

23.8” Diagonal White LED-Backlight

Brightness (Typical)

250cd/m2

Flat/Cuved

Flat

Color Gamut

NTSC 72%

Contrat (Typical)

3000 : 1 (VA)

Resolution (HxV)

16 : 9

Aspect Ratio

4ms GTG

Respose Time (Typpical)

H 178° / V 178°

Panel Surface

Anti-glare

Displaycolor

16.7M

PC INPUT

RANGE

Max.diplay frequency

(Resolution H*V/Fv)

1920*1080/75Hz

INTERFACE

Input 1

DC in x1

Input 2

VGA x 1

Input 3

HDMI x1

POWER

Consumption(Typical)

On : 24W

Satndby : ≤0,5W Off≤0.3W

Power Range

AC 100-240V 50/60Hz

Power Mode Indicator Light

Power on : White (LED)

Power saving : White Flicker (LED)

OPRATING

CONDITION

Temperature

0°C ~ 40°C

Humidity

20% ~ 85%, non-condensing

PHYSICAL

Dismension

(W*D*H)

541.6*180.8*416.7mm

Packing Dismension

(W*D*H)

630*146*400mm

Net Weight

4.2 kg

Gross Weight

3.0 kg

Tilt Angle()

-5°(±2°) ~ +15(±2°)

Kensington Lock

YES

Control Key

YES

VESA Mounting

75*75mm

ACCESSORY

Power cable

NA

Adapter

12V/2A

HDMI-HDMI Cable

YES

User Manual (Paper)

YES

Qick Star Guide(Paper)

YES
