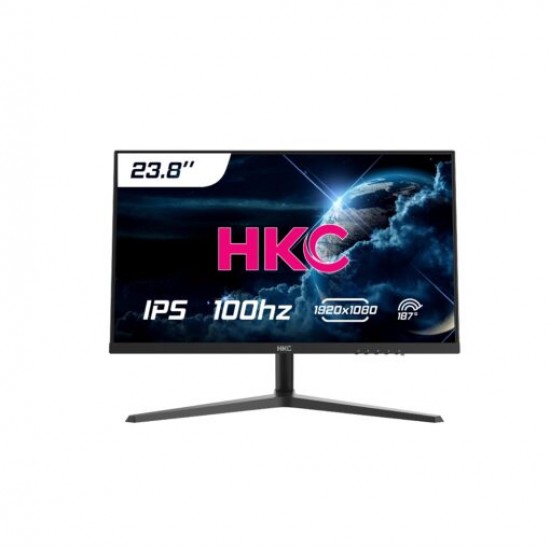

MÀN HÌNH HKC MB24V9-U /100Hz

MODEM

MB24V9-U

PANEL

IPS

SIZE

23.8 inch

            LCD PANEL

Display Size

23.8” Led-Backlight

Brightness (Typical)

250vd/m2(Max)

Color Gamut

Srgb 99%

Contrat (Typical)

1000:1

Resolution (HxV)

192x1080

Aspect Ratio

16:9

Respose Time (Typpical)

MPRT 5ms

View Angles LR,UD(CR>10)

H 1781°/V 178°

Panel Surface

Anti-glare

Displaycolor

16.7M colors

PC INPUT

RANGE

Max.Display frequency

(Resolution)

1920x1080/144Hz

       INTERFACE

Input 1

DC In x1

Input 2

HDMI 2.0 x1

Input 3

VGA x1

POWER

Consumption(Typical)

On: ≤ 30W

Standby ≤ 0,5W, Off ≤ 0,3W

Power Range

AC 100-240V 50/60Hz

Power Mode Indicator Light

Poweron: White(LED)

Power saving : White Flicker (LED)

OPRATING

CONDITION

Temperature

5°C ~ 40°C

Humidity

20% ~ 85%, non-condensing

PHYSICAL

Dismension

(W*D*H)

541.9*424.5*208.9mm

Packing Dismension

(W*D*H)

616*405*132mm

Net Weight

2.77 kg

Gross Weight

4.3 kg

Tilt Angle()

-5°(+/-2°) ~ +20°(+/-2°)

Kensington Lock

Yes

Control Key

Joystick button

VESA Mounting

75*75mm

ACCESSORY

Adapter

12V/2A (1.5m)

HDMI-HDMI Cable

Yes (1.5m)

User Manual (Paper)

Yes
