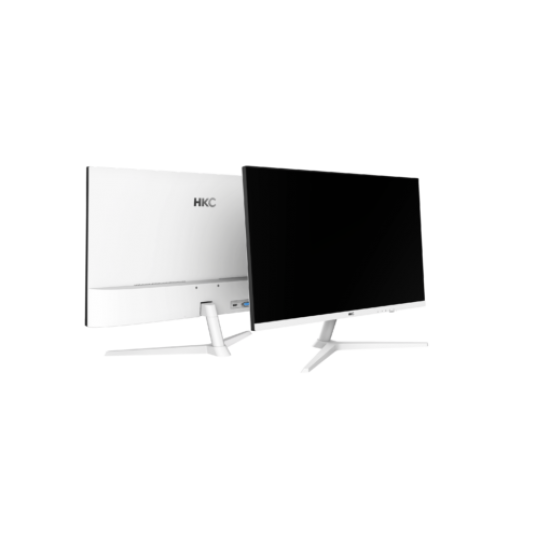

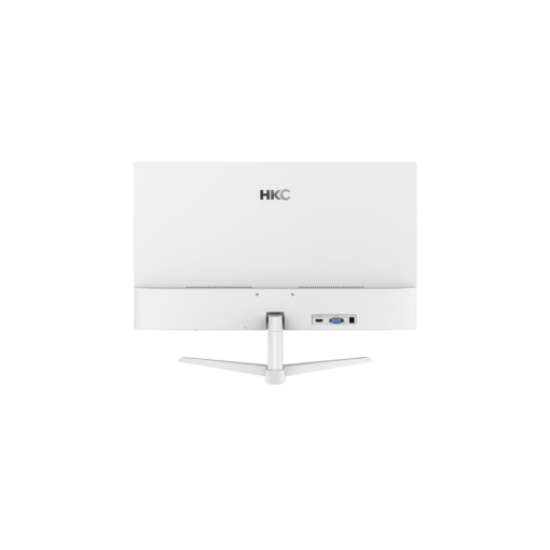

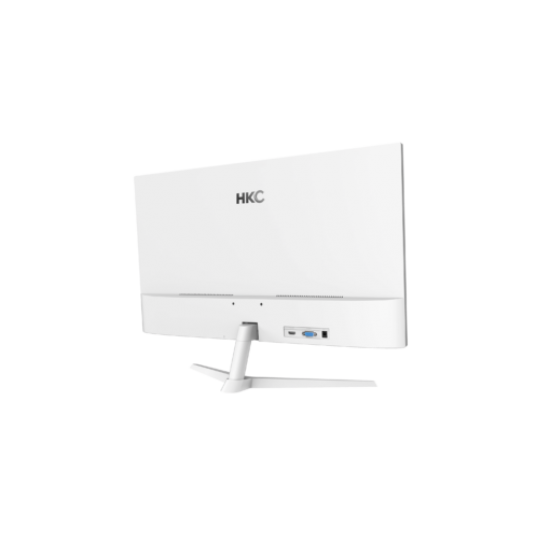

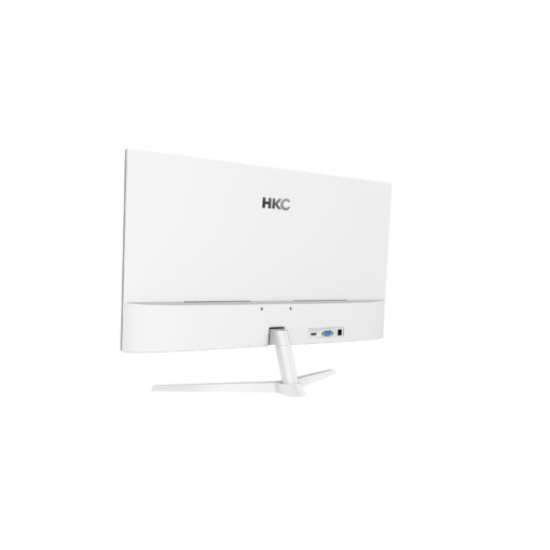

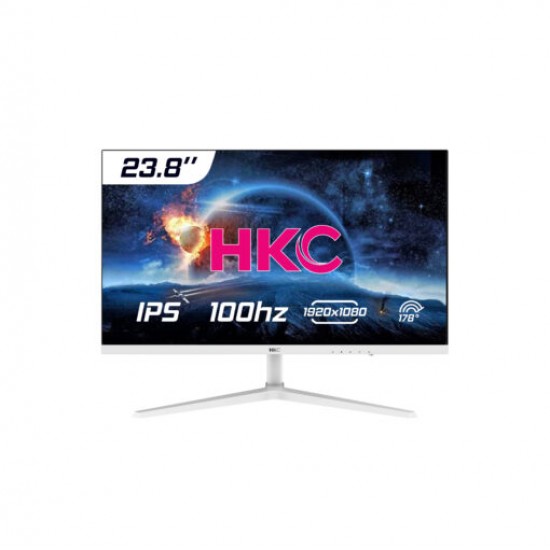

MÀN HÌNH HKC MB24V7-W

MODEM

MB24V7-W

PANEL

IPS

SIZE

23.8 inch

            LCD PANEL

Display Size

23.8” Led-Backlight

Brightness (Typical)

250vd/m2

Flat/Cuved

FLAT

Color Gamut

sRGB 99%

Contrat (Typical)

1000:1

Resolution (HxV)

192x1080

Active Area(mm)

527.04(H) x 296.46(V)

Pixel Picth(mm)

0.2745(H) x 0.2745(V)

Aspect Ratio

16:9

Respose Time (Typpical)

GTG 5ms

View Angles LR,UD(CR>10)

H 1781°/V 178°

Panel Surface

Anti-glare

Displaycolor

16.7M colors

PC INPUT

RANGE

Max.Display frequency

(Resolution)

1920x1080/100Hz

       INTERFACE

Input 1

DC In x1

Input 2

HDMI 2.0 x1

Input 3

VGA x1

POWER

Consumption(Typical)

On: ≤ 24W

Standby ≤ 0,3W, Off ≤ 0,5W

Power Range

AC 100-240V 50/60Hz

Power Mode Indicator Light

Poweron: White(LED)

Power saving : White Flicker (LED)

OPRATING

CONDITION

Temperature

5°C ~ 40°C

Humidity

20% ~ 85%, non-condensing

PHYSICAL

Dismension

(W*D*H)

541.93*207.42*411.24mm

Packing Dismension

(W*D*H)

596*93*392mm

Net Weight

2.504 kg

Gross Weight

3.746 kg

Tilt Angle()

-5°(+/-2°) ~ +20°(+/-2°)

Kensington Lock

Yes

Control Key

Joystick button

VESA Mounting

75*75mm

ACCESSORY

Adapter

12V/2A (1.5m)

HDMI-HDMI Cable

Yes (1.5m)

User Manual (Paper)

Yes
